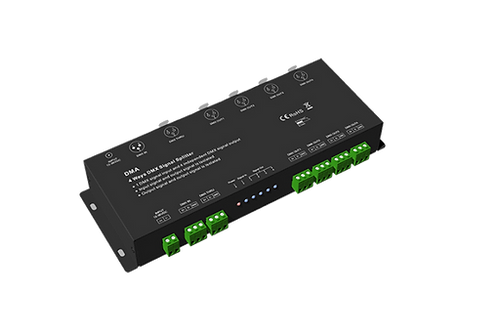

4 Ways DMX Signal Splitter

Description

• One DMX512 signal input, repeat four DMX512 signal output, each allowing for 32 DMX devices to be connected.
• Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is
• connected to the bus of DMX512(or RS-485).
• Photo-electricity insulation between input and output terminals, output terminals among channels.
• Input isolated from outputs to 500VAC, 1000VDC.
• Outputs are isolated from each other to 500VAC, 1000VDC.
• Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
• 3 pin XLR / 3 screw terminals input and loop through, 5 pin XLR option available.
• 6 front panel LEDs indicate power in, DMX in and DMX output status at each output.
